Celloger® Stack
- Automated multi-layer vessel monitoring system
- Celloger® Stack is an automated multi-layer vessel monitoring system that enables real-time imaging of cell samples while they are cultured in an incubator. The system is capable of detecting cells growing in a multi-layer chamber and identifying the optimal time for cell harvest. With its motorized camera that can move in all directions, the system captures multiple points within the travel range which can be made into a time-lapse video with a simple click.
Key Features
- Real-time cell monitoring
- Multi-layer observation up to 10 layers
- High reproducibility in mass cell culture
- Fully motorized multi-point imaging
- Fast, reliable autofocusing
- Time-lapse video capture

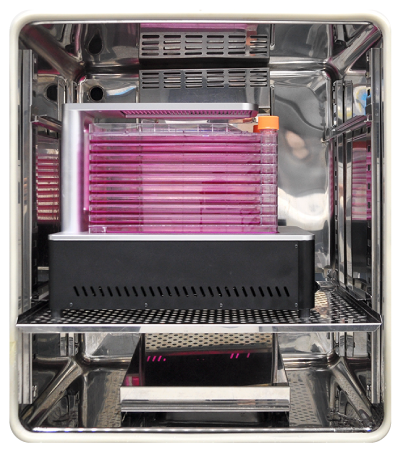

Real-time monitoring inside an incubator
Our optimized cell detection and imaging technology applied to Celloger® Stack allows you to monitor multi-layer vessels with up to 10 layers while culturing the cells in a standard CO₂incubator (image acquired from the bottom layer).
By simply placing the culture vessel on the Celloger® Stack and connecting it to your laptop, you can observe the growth of your cells in real-time without removing them from the incubator.

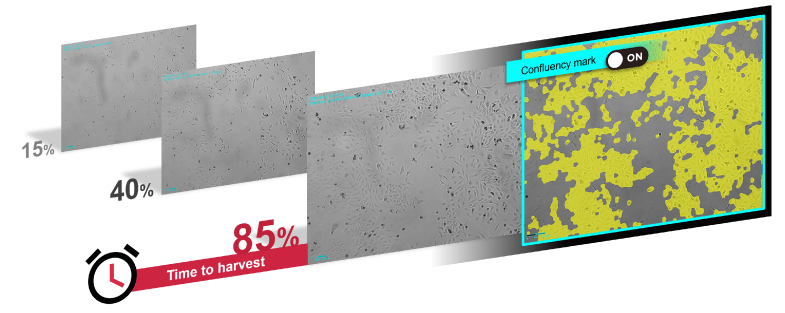

Shows the right time to harvest your cells
The system automatically captures the images of set positions in accordance with the time-lapse schedule set by the user.
You can review these images to determine the optimal time for cell harvesting or set an alarm to notify you when the appropriate confluency level has been reached (currently in development).

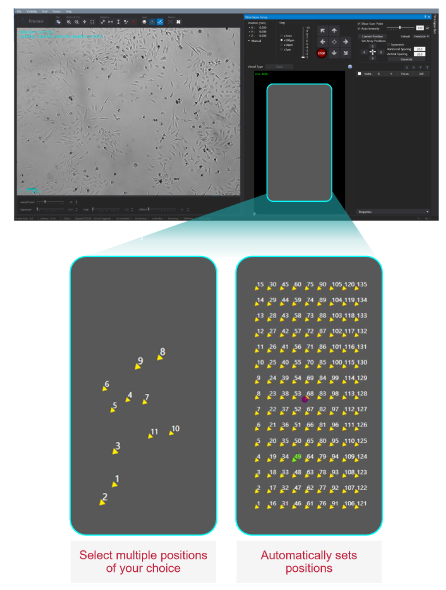

Captures images of multiple positions
The Celloger® Stack has a motorized camera that travels 11cm x 24cm, x and y axis respectively, multiple points within the travel range can be imaged according to a schedule set by the user.
It is possible to set various imaging schedules based on your research protocol, and the schedule modification can be made easily through simple adjustments.

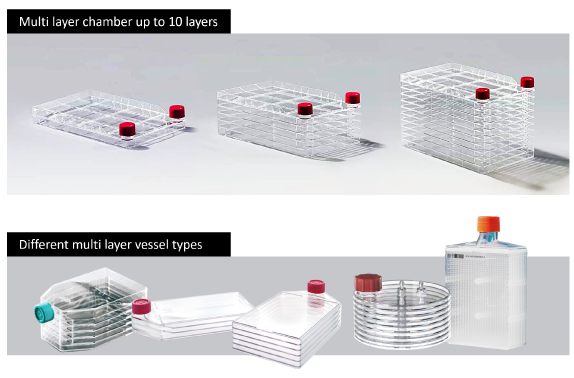

Different vessels can be used with the interchangeable vessel holders
The Celloger® Stack comes with interchangeable vessel holders that allow the use of different vessels, making it versatile and adaptable to various experimental needs.
The standard package includes a holder for Cellstack, but customized holders for vessels of different sizes, such as multi-layer dishes and flasks, can be provided upon request.
User-friendly functions

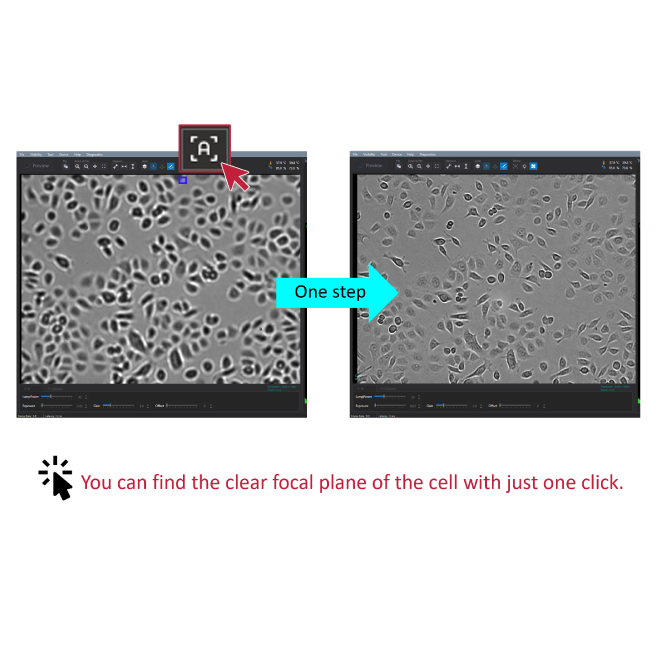

Autofocusing

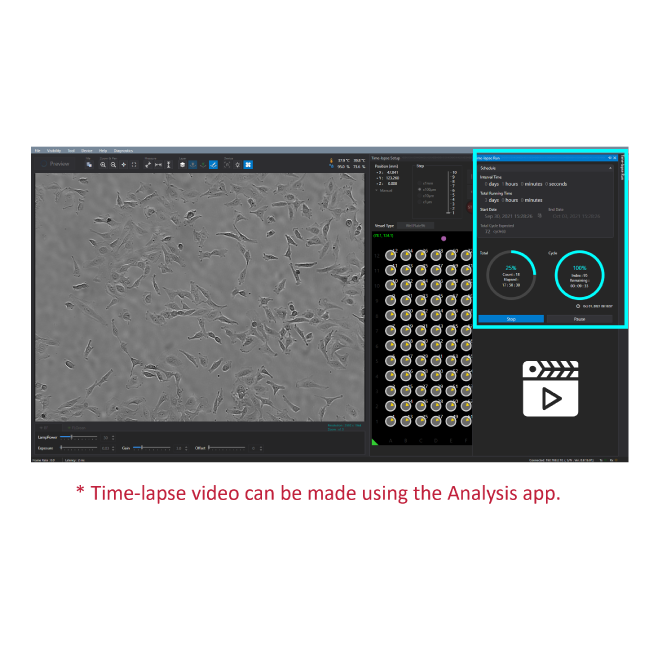

Time-lapse video

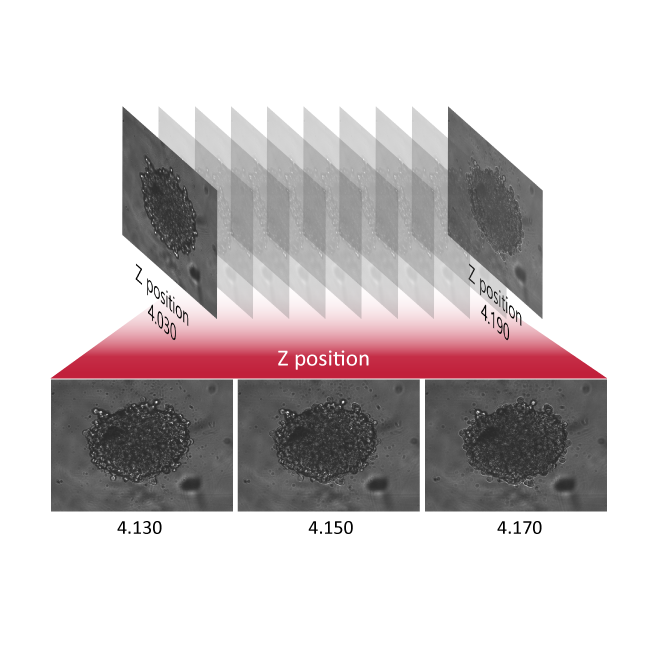

Z-Stacking

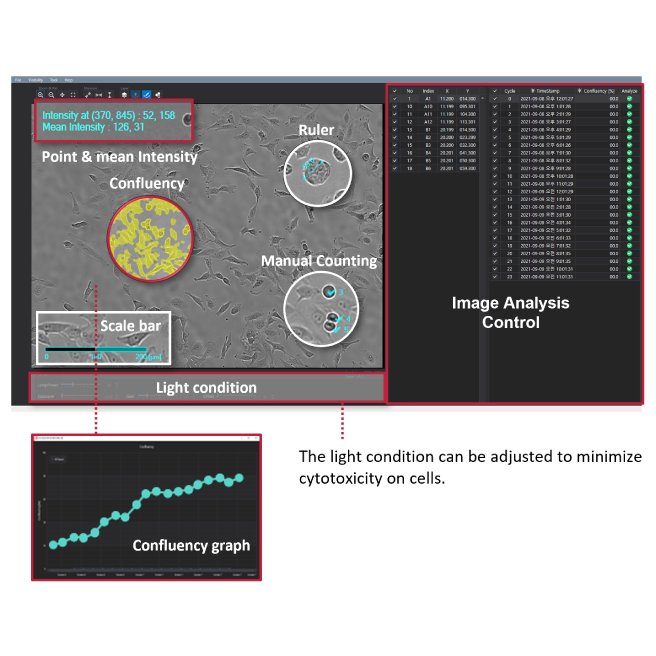

Analysis tools
