FACSCOPE® B
- Automatic Cell Counter
- FACSCOPE® B is an automatic stand-alone cell counting system based on a bright-field microscopy. FACSCOPE® B overcomes inconvenience associated with conventional hemocytometer by providing features such as autofocusing, customized presets, various counting modes, and user-friendly software.
Key Features
- Advanced cell detection
- Autofocusing function
- Precise counting results
- Customizable counting modes
- Disposable counting slides
- User-friendly operation

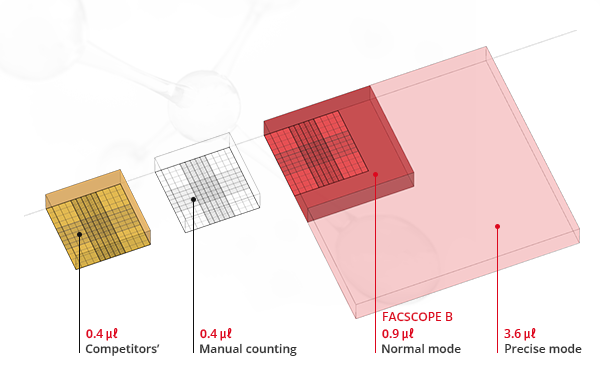

Large counting volume
FACSCOPE B analyzes larger counting volume than hemocytometer and any other cell counters, therefore acquires more reliable and meaningful results.
Autofocusing
The algorithm applied to FACSCOPE B finds the multiple focal planes and automatically selects the best and clearest focal plane.
The automatic focusing of FACSCOPE B eliminates variables that can cause human errors and enables users to obtain accurate results.
Advanced detection algorithm
The advanced recognition algorithm of FACSCOPE B provides users with the opportunity to observe various cells accurately.
Irregular cells and aggregated cells can be clearly identified, as well as live and dead cells for various cell-based studies.
-

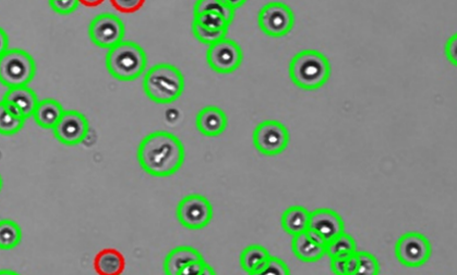

- Irregular Cell -
-

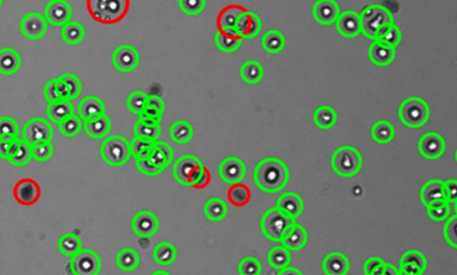

- Aggregated Cell -
-

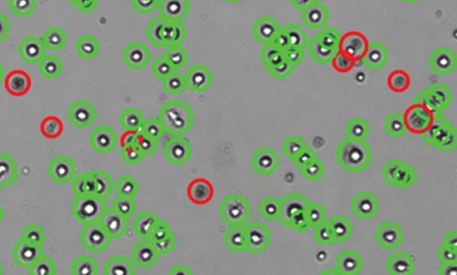

- Live / Dead Cell (viability) -

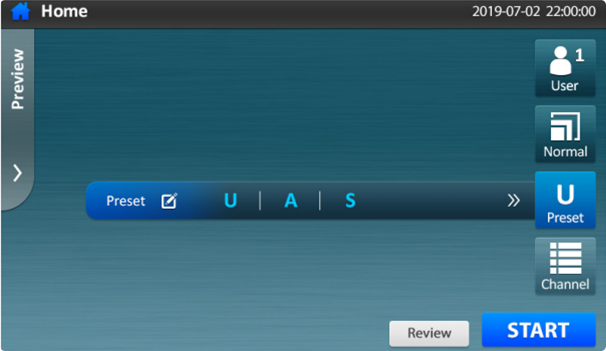

User-friendly software
Presets
- Selective Preset
-
-
U(Universal) To check general size and shape of cells
-
A(Aggregated) To count non-circular or variant shape of cells
-
S(Small) To test small size of cells
-
- Customized Preset
-
-
Customized preset Available to create up to 15 cases as users
-
-
Count mode
-
1
QUICK MODE 1 IMAGE
-
- Obtain approximate results immediately
- Applicable to managing cells like cell subculture
- ≈ 7s per channel,1X10⁶ cells/ml
-
2
NORMAL MODE 6 IMAGES (DEFAULT)
-
- To test cells with general concentration and size
- ≈ 30s per channel, 1X10⁶ cells/ml
-
3
PRECISE MODE 24 IMAGES
-
- Specialized in countiong low concentration sample
- Utilize depending on the status of cell line
- ≈ 100sper channer, 1X10⁶ cells/ml
